Q Series

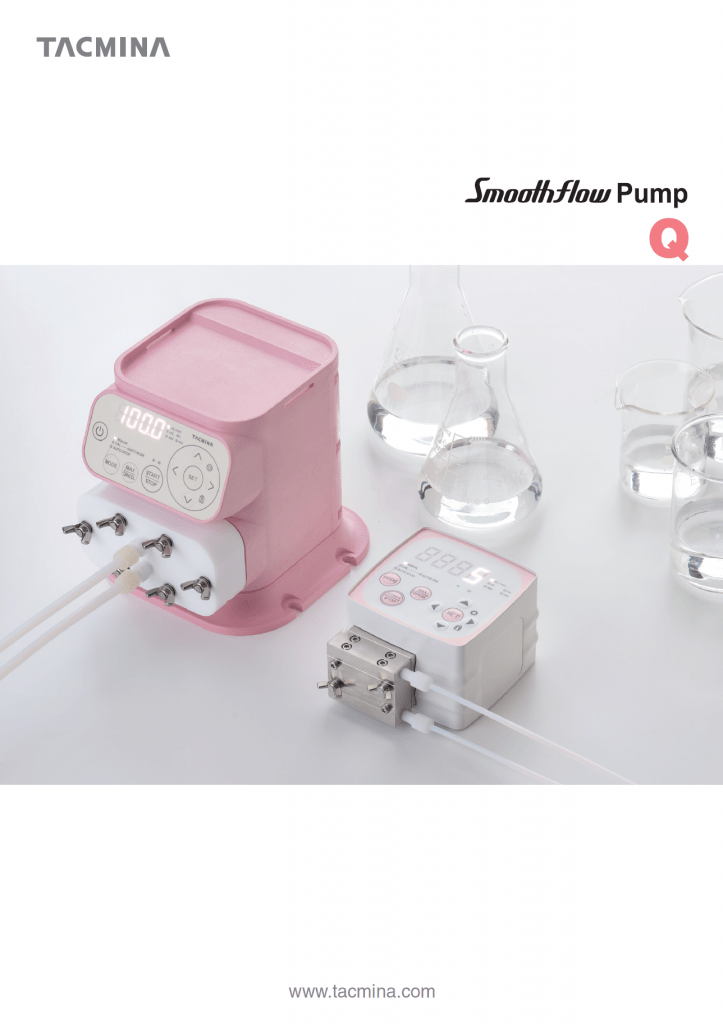

The ultimate lab pump for pulse-free, continuous flow processing of almost any fluid. The Q Pump and the Q-5 Microliter Class.

Industries: Chemistry/New Materials, Food Pharma Biotech

Learn More

Q

Max flow rate

100 60 30 10
mL/min 100 60 30 10
L/h 6 3.6 1.8 0.6
US G/h 1.58 0.95 0.47 0.15

Max discharge pressure

100 60 30 10
Mpa 0.3 0.6 1 2
Bar 3 6 10 20
Psi 43.5 87 145 290

Weight (Kg)

1.6 to 2.5

Power

100 to 240 VAC 50 Hz or 60 Hz

Q-5

Pump Specifications

Maximum flow rate 5000 µL/min (0.07 US G/h)
Flow rate control range 5 to 5000 µL/min
Maximum discharge pressure 3MPa (435 psi)
Connection type 1/4-28 UNF
Connection diameter ∅1/16″ x ∅1/8″
Ambient temperature 0 to 40°C
Transfer liquid temperature 0 to 40°C (no freezing)
Transfer liquid viscosity 50 mPa⋅s or less
Weight KR: 0.74 kg, 6R: 0.92 kg

For details contact TACMINA USA SALES

The performance specifications listed are for standard models. Please contact us for details on information on custom pumps to meet your specific application needs.

Compatible with acids, bases, and solvents. Precise liquid supplying with trace amounts in laboratory processes. Pumping performance and reliability that exceeds conventional laboratory pump expectations.

Excellent quantitative performance and responsiveness

  • Reproducibility within +/-1%
  • Flow rates can be finely configured:
    • Q Series standard setting: in 0.1 mL/min increments, this can be changed in steps of 0.01 mL/min by using a parameter (manual operation mode only)
    • Q-5 Series in increments of 1 µL/min increments
  • Excellent responsiveness allows for quick enforcement of starting and stopping operations and flow rate change operations

More features

  • Ability to maintain pumping accuracy over long periods of time
  • Service life of components is longer and running costs are low
  • Continuous, constant flow with no pulsation
  • No liquid leakage or change in properties
  • Not damaged by abnormal pressure or dry running
  • Simple transition to more powerful options
  • Simple user-oriented design
  • Easy configuration of flow rate settings and calibration
  • Simple disassembly and assembly
  • Simple liquid switching
  • Easy to carry
  • Selectable liquid-end section materials
  • Supports autoclave sterilization
  • Control functions for various types of operations
