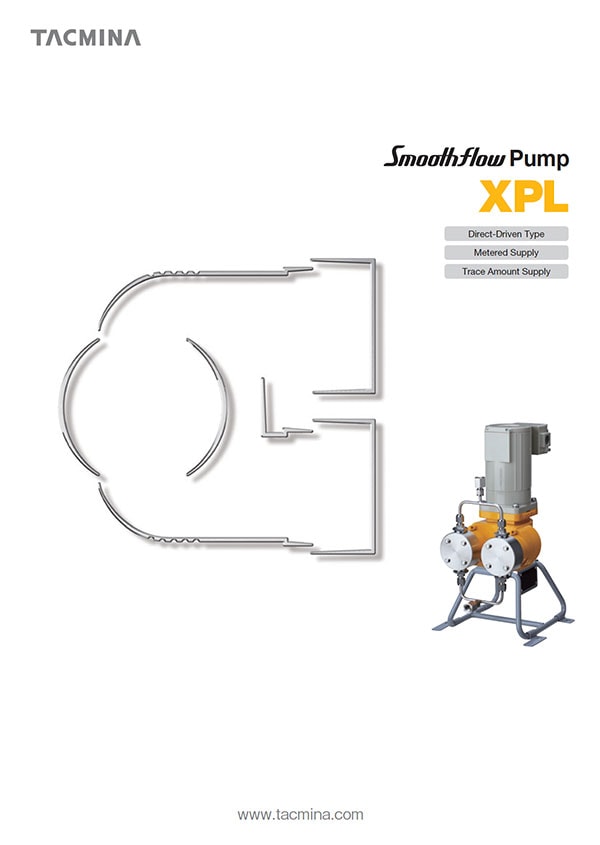

XPL Direct-Driven Smoothflow Pump

The XPL offers lab-grade performance in a rugged plant-floor proven package. The XPL is designed for use in precision coating processes, liquid mixing systems, general chemical injection, laboratory scale transferring of trace amounts, dispersion, mixing/blending, filtration, spray drying, and for use in sanitary systems.

Industries: Chemistry/New materials, Battery/Renewable Energy, Food/Pharma/Biotech, Electronic Materials & Optical Films, Environment/Water Treatment, Sterilization/Disinfection

Learn More

Max Discharge Volume

Max discharge volume Model 001 Model 003 Model 01 Model 03 Model 1 Model 3
L/min 0.009 0.025 0.1 0.3 1 3
L/h 0.54 1.5 6 18 60 180
US G/h 0.15 0.44 1.58 4.75 15.84 47.52

Max Discharge Pressure

Model 001 and 003 Model 01 and 03 Model 1 and 3
MPa 1.5 1.0 0.5
bar 15 10 5
psi 217.5 145 72.5

Weight (Kg)

Model 001 Model 003 Model 01 Model 03 Model 1 Model 3
SUS type 12.3 12.3 12.3 12.3 16.4 17.4
PVC type 10.3 10.3 10.3 10.4 12.2 12.4

Power supply/Frequency

3-phase 200 V (50Hz)/200/220V (60Hz) standard, 400V (50Hz)/400 440 V (60Hz) motors are also available

For details contact TACMINA USA SALES

The performance specifications and dimensions are for standard models. Please contact us for information on custom pumps to meet your specific application needs.

Constant and stable flow

  • Little flow rate fluctuation
  • No pulsation

Easy maintenance

  • Disassembly with few tools
  • Simple maintenance of liquid-end parts

No leaking

  • No movable sealing parts preventing liquid leakage and air exposure
  • No risk of foreign matter contamination
  • No fluid leakage

Easy to customize

  • Removable base to reduce size
  • Motor options include standard, general, and explosion-proof
  • Standard or electroless nickel-plated for compatibility with organic solvents
  • Liquid end parts in SS, SS Sanitary, PVC, and PTFE and more
